3 Springboot&VUE开发实践（前后端整合开发）

3 SpringBoot+VUE案例开发

经过对SpringBoot及VUE的学习，我们已经对他们的开发流程有了一定的了解，我们将这两个框架进行整合，并实现一个简单的前后的开发案例“HelloWorld”。这个案例我们主要实现：（1）系统的登陆、退出；（2）用户的查询、新增、修改、删除。系统架构如下图所示：

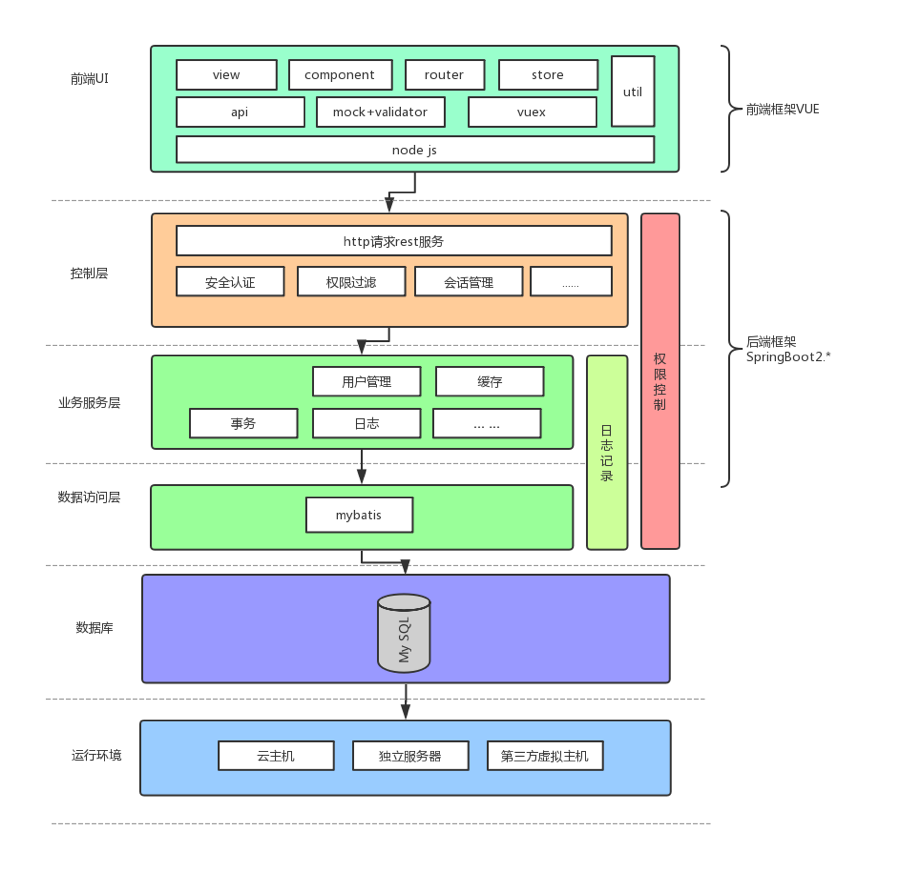

从架构图中可以看到前端UI采用VUE框架开发， vue框架整合了mock、validator、vuex等组件。后端包括：控制层、业务服务层和数据访问层，基于SpringBoot2开发，控制层主要实现了rest的http服务以及权限控制；业务服务层主要用于实现业务逻辑，同时也具备了日志、事物、缓存等功能；数据访问层采用mybatis框架实现。本节案例开发采用mysql作为数据库。

3.1 后端开发

3.1.1 创建工程

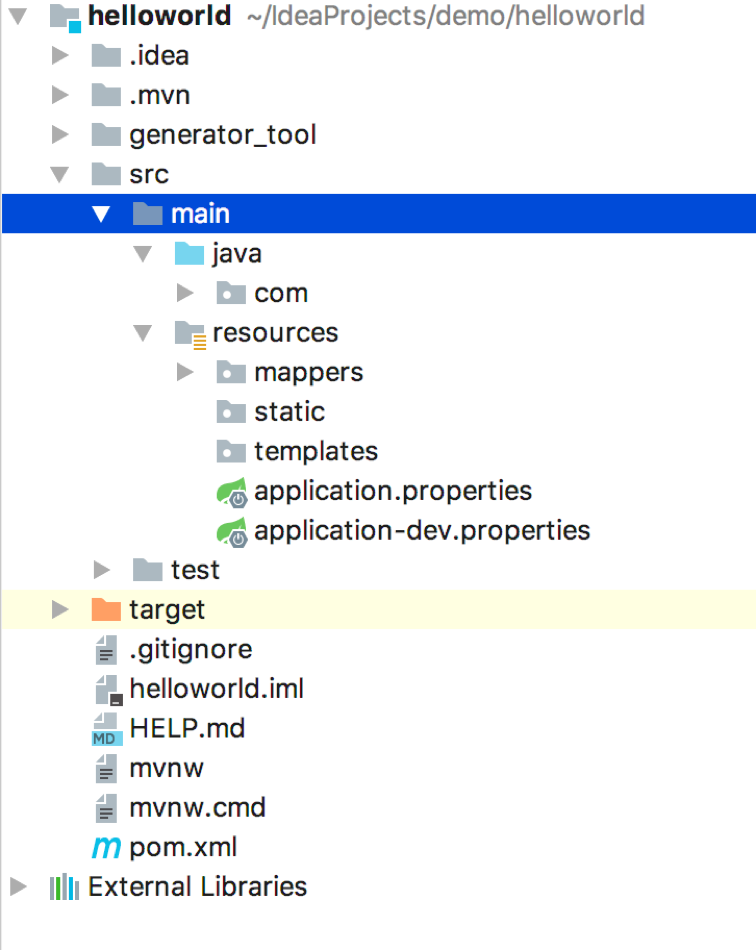

后端框架采用SpringBoot2+mybatis+redis整合框架开发，可以参照我们在SpringBoot开发的第一个工程，我们创建一个helloworld的后端工程。结构如下：

3.1.2 工程配置

SpringBoot工程的主要配置文件包括maven的POM文件和application.properties配置文件。

pom文件内容为：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.5.RELEASE</version>
        <relativePath/>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>helloworld</artifactId>
    <packaging>jar</packaging>
    <version>1.0.1.RELEASE</version>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <lombok.version>1.16.18</lombok.version>
        <commons-lang3.version>3.8.1</commons-lang3.version>
        <commons-collections.version>3.2.1</commons-collections.version>

        <redis.version>2.9.0</redis.version>
        <fastjson.version>1.2.21</fastjson.version>
        <swagger2.version>2.2.2</swagger2.version>
        <oracle.version>11.2.0.3</oracle.version>
        <mysql.version>8.0.11</mysql.version>
        <druid-starte.version>1.1.1</druid-starte.version>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.15</log4j.version>
        <net.minidev.json-smart.version>2.2.1</net.minidev.json-smart.version>
        <net.minidev.asm.version>1.0.2</net.minidev.asm.version>
        <httpclient.version>4.5.2</httpclient.version>
        <shiro.version>1.4.0</shiro.version>
        <shiro-redis.version>3.1.0</shiro-redis.version>
        <mybatis-spring.version>1.3.2</mybatis-spring.version>
        <mybatis-mapper.version>3.4.0</mybatis-mapper.version>
        <mybatis-pagehelper.version>1.2.10</mybatis-pagehelper.version>
        <guava.version>18.0</guava.version>
        <jwt.verson>0.9.0</jwt.verson>

        <docker.host>http://127.0.0.1:2375</docker.host>
        <docker.repostory>127.0.0.1:5000</docker.repostory>
        <docker.registry.name>zone7</docker.registry.name>
        <docker.plugin.version>0.4.13</docker.plugin.version>
        <skipDockerBuild>false</skipDockerBuild>
    </properties>

    <dependencies>




        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <exclusions>
                <!-- 移除嵌入式tomcat插件，需要增加servlet-api，打包时打开注解 -->
                <!--<exclusion>-->
                <!--<groupId>org.springframework.boot</groupId>-->
                <!--<artifactId>spring-boot-starter-tomcat</artifactId>-->
                <!--</exclusion>-->
                <!-- 移除springboot自带的logback日志管理 -->
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <!-- 移除嵌入式tomcat插件，需要增加servlet-api，打包时打开注解 -->
        <!--<dependency>-->
        <!--<groupId>javax.servlet</groupId>-->
        <!--<artifactId>javax.servlet-api</artifactId>-->
        <!--<version>3.1.0</version>-->
        <!--<scope>provided</scope>-->
        <!--</dependency>-->

        <!-- 引入依赖之后spring.aop.auto默认开启，不需要添加@EnableAspectJAutoProxy来启动 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-cache</artifactId>
        </dependency>

        <!--安全验证相关-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-security</artifactId>
            <version>2.1.2.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security.oauth</groupId>
            <artifactId>spring-security-oauth2</artifactId>
            <version>2.0.14.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.security.oauth.boot</groupId>
            <artifactId>spring-security-oauth2-autoconfigure</artifactId>
            <version>2.1.5.RELEASE</version>
         </dependency>

        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-jwt</artifactId>
            <version>1.0.10.RELEASE</version>
        </dependency>
        <!--解析JWT-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>${jwt.verson}</version>
        </dependency>
        <!-- 安全相关  -->


        <!-- log4j2日志管理 (springboot1.4以上不支持log4j) -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-log4j2</artifactId>
        </dependency>
        <dependency>
            <groupId>com.lmax</groupId>
            <artifactId>disruptor</artifactId>
            <version>3.4.1</version>
        </dependency>
        <!-- log4j2日志管理-->

        <!--junit-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>net.minidev</groupId>
            <artifactId>json-smart</artifactId>
            <version>2.2.1</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>net.minidev</groupId>
            <artifactId>asm</artifactId>
            <version>1.0.2</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>${junit.version}</version>
        </dependency>
        <!--junit-->

        <!-- mybatis -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>${mybatis-spring.version}</version>
        </dependency>
        <!-- mybatis -->

        <!-- mybatis通用mapper -->
        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper</artifactId>
            <version>${mybatis-mapper.version}</version>
        </dependency>
        <!-- mybatis通用mapper -->

        <!-- mybatis pagehelper -->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>${mybatis-pagehelper.version}</version>
        </dependency>
        <!-- mybatis pagehelper -->

        <!--druid-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>${druid-starte.version}</version>
        </dependency>
        <!--druid-->

        <!--fastjson-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>${fastjson.version}</version>
        </dependency>
        <!--fastjson-->

        <!--oracle-->
        <dependency>
            <groupId>com.oracle</groupId>
            <artifactId>ojdbc6</artifactId>
            <version>${oracle.version}</version>
        </dependency>
        <!--oracle-->

        <!-- mysql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>
        <!-- mysql -->


        <!--redis-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!--redis-->

        <!-- mongodb -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-mongodb</artifactId>
        </dependency>
        <!-- mongodb -->

        <!--swagger2-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>${swagger2.version}</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>${swagger2.version}</version>
        </dependency>
        <!--swagger2-->

        <!--shiro-->
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-spring</artifactId>
            <version>${shiro.version}</version>
        </dependency>
        <!--shiro redis支持-->
        <dependency>
            <groupId>org.crazycake</groupId>
            <artifactId>shiro-redis</artifactId>
            <version>${shiro-redis.version}</version>
        </dependency>
        <!--shiro-->

        <!--httpclient-->
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>${httpclient.version}</version>
        </dependency>
        <!--httpclient-->



        <!-- 监控 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--guava-->
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>${guava.version}</version>
        </dependency>
        <!--guava-->

        <!-- rabbitmq  -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
            <version>2.1.0.RELEASE</version>
        </dependency>
        <!-- rabbitmq  -->

        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
        </dependency>
        <!--lombok-->

        <!--commons-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>${commons-lang3.version}</version>
        </dependency>
        <dependency>
            <groupId>commons-collections</groupId>
            <artifactId>commons-collections</artifactId>
            <version>${commons-collections.version}</version>
        </dependency>

        <dependency>
            <groupId>commons-beanutils</groupId>
            <artifactId>commons-beanutils</artifactId>
            <version>1.9.3</version>
        </dependency>

        <!--commons-->


        <dependency>
            <groupId>dom4j</groupId>
            <artifactId>dom4j</artifactId>
            <version>1.6.1</version>
        </dependency>
        <dependency>
            <groupId>net.sf.ezmorph</groupId>
            <artifactId>ezmorph</artifactId>
            <version>1.0.6</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-autoconfigure</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>


    </dependencies>

    <build>
        <finalName>app</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                    <encoding>${project.build.sourceEncoding}</encoding>
                </configuration>
            </plugin>

            <!-- 设置资源文件的编码方式 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
                <version>2.4.3</version>
                <executions>
                    <execution>
                        <phase>compile</phase>
                    </execution>
                </executions>
                <configuration>
                    <encoding>${project.build.sourceEncoding}</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                </configuration>

            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.20.1</version>
                <configuration>
                    <!-- 不指定单元测试 -->
                    <skipTests>true</skipTests>
                </configuration>
            </plugin>

            <plugin>
                <groupId>com.spotify</groupId>
                <artifactId>docker-maven-plugin</artifactId>
                <version>${docker.plugin.version}</version>
                <executions>
                    <execution>
                        <id>build-image</id>
                        <phase>package</phase>
                        <goals>
                            <goal>build</goal>
                        </goals>
                    </execution>
                    <execution>
                        <id>push-image</id>
                        <phase>deploy</phase>
                        <goals>
                            <goal>push</goal>
                        </goals>
                        <configuration>
                            <imageName>${docker.repostory}/${docker.registry.name}/${project.artifactId}:${project.version}</imageName>
                        </configuration>
                    </execution>
                </executions>
                <configuration>
                    <registryUrl>${docker.repostory}</registryUrl>
                    <pushImage>true</pushImage>
                    <dockerHost>${docker.host}</dockerHost>
                    <dockerDirectory>${project.basedir}/src/main/docker</dockerDirectory>
                    <imageName>${docker.repostory}/${docker.registry.name}/${project.artifactId}:${project.version}</imageName>
                    <imageTags>
                        <imageTag>${project.version}</imageTag>
                    </imageTags>
                    <resources>
                        <resource>
                            <targetPath>/</targetPath>
                            <directory>${project.build.directory}</directory>
                            <include>${project.build.finalName}.jar</include>
                        </resource>
                    </resources>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

application.properties配置文件，在这里我们将其配置为dev模式，同时在resources下增加一个application-dev.properties的配置文件，用于配置开发测试期间的参数。

文件application.properties

spring.profiles.active=dev

文件application-dev.properties

#==================  server  ===================#
server.port=8080
#server.context-path=/springboot

#================== mybatis =====================#
mybatis.mapper-locations=classpath:mappers/**/*.xml
mybatis.configuration.map-underscore-to-camel-case=true
#================ mybatis pagehelper ==============#
pagehelper.helper-dialect=mysql
pagehelper.reasonable=true
pagehelper.support-methods-arguments=true
pagehelper.params=count=countSql

#==================  database  ===================#
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/zone-demo
spring.datasource.username=root
spring.datasource.password=zgq
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
#初始化大小，最小，最大
spring.datasource.initialSize=5
spring.datasource.minIdle=5
spring.datasource.maxActive=20
# 配置获取连接等待超时的时间
spring.datasource.maxWait=60000
# 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
spring.datasource.timeBetweenEvictionRunsMillis=60000
# 配置一个连接在池中最小生存的时间，单位是毫秒
spring.datasource.minEvictableIdleTimeMillis=300000
spring.datasource.validationQuery=SELECT 1 FROM DUAL
spring.datasource.testWhileIdle=true
spring.datasource.testOnBorrow=false
spring.datasource.testOnReturn=false
# 打开PSCache，并且指定每个连接上PSCache的大小
spring.datasource.poolPreparedStatements=true

#==================  redis  ===================#
# redis 单节点地址
spring.redis.host=localhost
# redis 集群
#spring.redis.cluster.nodes=192.168.177.128:7001,192.168.177.128:7002,192.168.177.128:7003
#spring.redis.cluster.max-redirects=3
# Redis 数据库
spring.redis.database=0
# Redis 端口
spring.redis.port=6379
# Redis 密码
spring.redis.password=
# 连接池最大连接数（使用负值表示没有限制）
spring.redis.jedis.pool.max-active=8
# 连接池最大阻塞等待时间（使用负值表示没有限制）
spring.redis.jedis.pool.max-wait=-1
# 连接池中的最大空闲连接
spring.redis.jedis.pool.max-idle=8
# 连接池中的最小空闲连接
spring.redis.jedis.pool.min-idle=0
# 连接超时时间（毫秒）
spring.redis.timeout=3000

#==================  cache ===================#
spring.cache.type=redis

#==================  RabbitMq  ===================#
spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
spring.rabbitmq.username=admin
spring.rabbitmq.password=admin

spring.rabbitmq.listener.concurrency=10
spring.rabbitmq.listener.max-concurrency=20
spring.rabbitmq.listener.prefetch=50
#==================  RabbitMq 队列配置 ===================#
mq.env=local
basic.info.mq.exchange.name=${mq.env}:basic:info:mq:exchange
basic.info.mq.routing.key.name=${mq.env}:basic:info:mq:routing:key
basic.info.mq.queue.name=${mq.env}:basic:info:mq:queue

#==================  mongoDB 配置 ===================#
spring.data.mongodb.host=localhost
spring.data.mongodb.port=27017
spring.data.mongodb.database=test

#==================  slf4j日志配置 ===================#
# 路径
logging.path=/Users/zgq/logs
logging.file=helloworld.log
#location of config file (default classpath:logback.xml for logback)
#logging.config=
# levels for loggers, e.g. "logging.level.org.springframework=DEBUG" (TRACE, DEBUG, INFO, WARN, ERROR, FATAL, OFF)
logging.level.com.zone7=INFO

#==================  默认密码  ===================#
system.default.password=123456

#==================  监控  ===================#
#actuator端口
management.server.port=8310
#修改访问路径，2.0之前默认是/，2.0默认是/actuator
management.endpoints.web.base-path=/actuator
#开放所有页面节点 ，默认只开启了health、info两个节点
management.endpoints.web.exposure.include=*
#显示健康具体信息，默认不会显示详细信息
management.endpoint.health.show-details=always

3.1.3 代码开发

3.1.3.1 用户安全验证

首先我们沿用第一章的SpringBoot工程，在 “/src/main/java/com/zone7/demo/helloworld/config/filter”下新增加一个安全过滤器，在实际应用中可以采用Oauth2、SpringSecurity或者Shiro来实现，这里只使用了session保存用户状态，并通过一个Filter的实现类来获取用户是否处于登陆状态来控制系统的安全访问。代码如下所示：

package com.zone7.demo.helloworld.config.filter;

import com.google.common.collect.Sets;
import com.zone7.demo.helloworld.sys.common.RequestHolder;
import com.zone7.demo.helloworld.sys.vo.SysUserVo;

import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.List;
import java.util.Set;

/**
 * RequestFilter
 * 请求过滤器
 * 安全认证
 * @author: zone7
 * @time: 2019.02.19
 */
@WebFilter(filterName = "RequestFilter", urlPatterns = "/*")
public class RequestFilter implements Filter {

    private static Set<String> URL_WHITE_LIST = Sets.newHashSet();

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
        //忽略不过旅的路径
        URL_WHITE_LIST.add("/unauth");
        URL_WHITE_LIST.add("/login");
        URL_WHITE_LIST.add("/logout");

        URL_WHITE_LIST.add("/sys/unauth");
        URL_WHITE_LIST.add("/sys/login");
        URL_WHITE_LIST.add("/sys/logout");

        URL_WHITE_LIST.add("/static");
        URL_WHITE_LIST.add("/actuator");
        URL_WHITE_LIST.add("/oauth");//oauth2.0默认接口
        URL_WHITE_LIST.add("/api"); // 外部接口采用oauth进行权限验证
    }

    private boolean isWhiteUrl(String requestUrl){
        if (URL_WHITE_LIST.contains(requestUrl)){
            return true;
        }
        for(String str:URL_WHITE_LIST){

            if(requestUrl.startsWith(str)){
                return true;
            }

        }

        return false;
    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest request = (HttpServletRequest) servletRequest;
        HttpServletResponse response = (HttpServletResponse) servletResponse;
        String requestUrl = request.getRequestURI();
        if (isWhiteUrl(requestUrl)) {
            filterChain.doFilter(servletRequest, servletResponse);
            return;
        }
        SysUserVo userVo = (SysUserVo) request.getSession().getAttribute("user");
        if (userVo == null) {
            request.getRequestDispatcher("/unauth").forward(request, response);
            return;
        }

        RequestHolder.add(userVo);
        RequestHolder.add(request);


        filterChain.doFilter(servletRequest, servletResponse);
    }

    @Override
    public void destroy() {

    }
}

3.2 前端开发

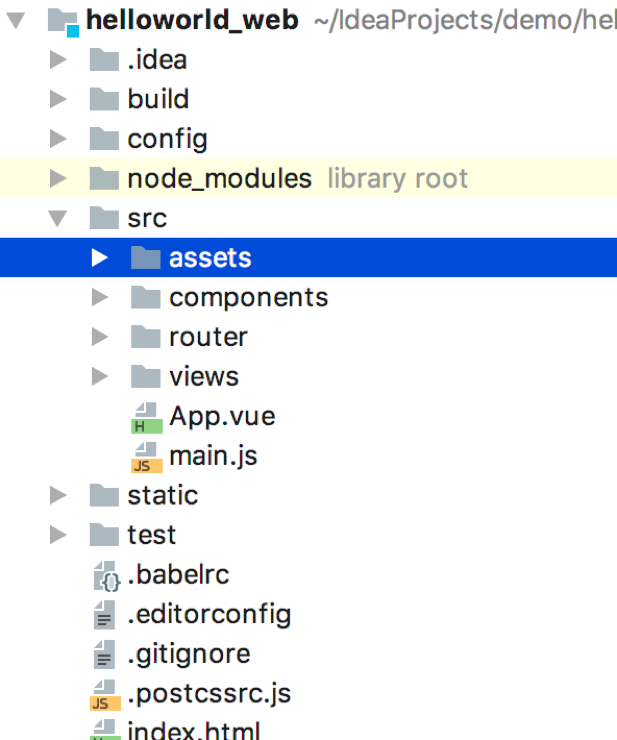

采用vue-cli 命令生成工程脚手架（创建命令：vue init webpack helloworld_web），前端工程的名称为“helloworld_web” 。采用IDEA工具打开工程，默认的结构如下图所示：

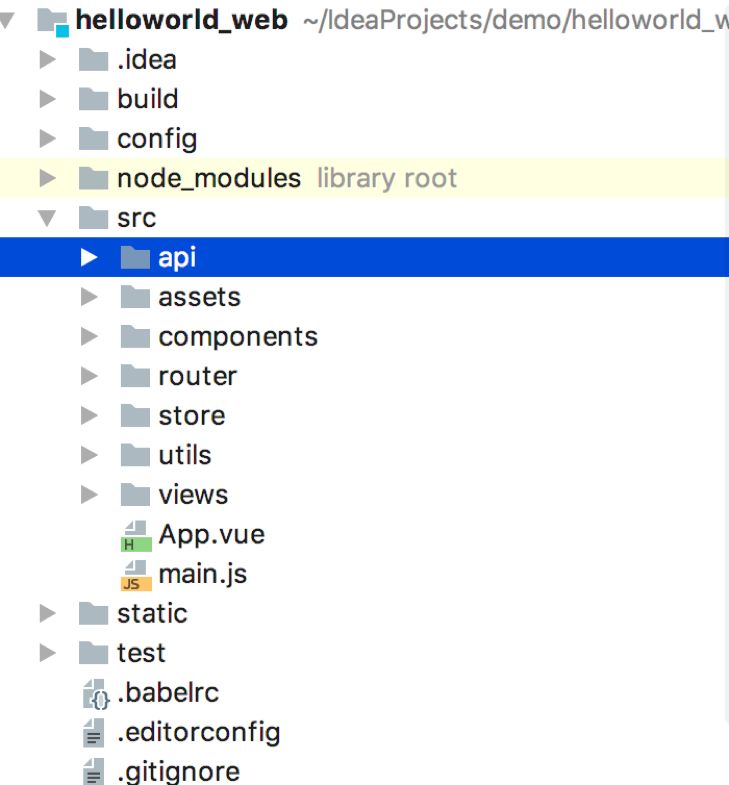

工程目录默认有了router、compotent、assets，我们还需要增加api、views、store、utils目录。api目录用于存放采用mock实现的前后端交互脚本，views用于存放功能页面vue模板，store用于存放采用vuex实现的状态管理功能，utils用于存放通用工具脚本。工程目录结构如下图所示：
