1、docker安装Hyperledger explorer

步骤一、下载
git clone https://github.com/hyperledger/blockchain-explorer.git

步骤二、拷贝证书文件

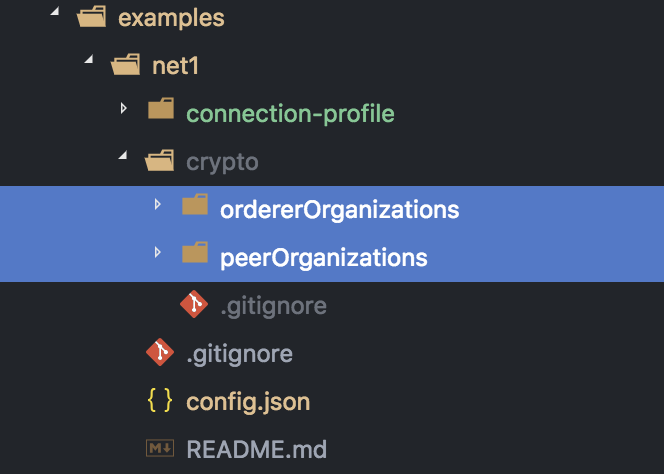

拷贝fabric的crypto-config目录下的两个文件夹（ordererOrganizations、peerOrganizations）到blockchain-explorer/examples/net1/crypto 目录下

配置文件

步骤三、修改连接配置文件config.json

修改examples 目录下的config.json
配置文件

1
2
3
4
5
6
7
8
9
{
	"network-configs": {
		"hello": {
			"name": "helloworld",
			"profile": "./connection-profile/hello.json"
		}
	},
	"license": "Apache-2.0"
}

其中profile为fabric连接文件。

步骤四、添加Fabric连接文件

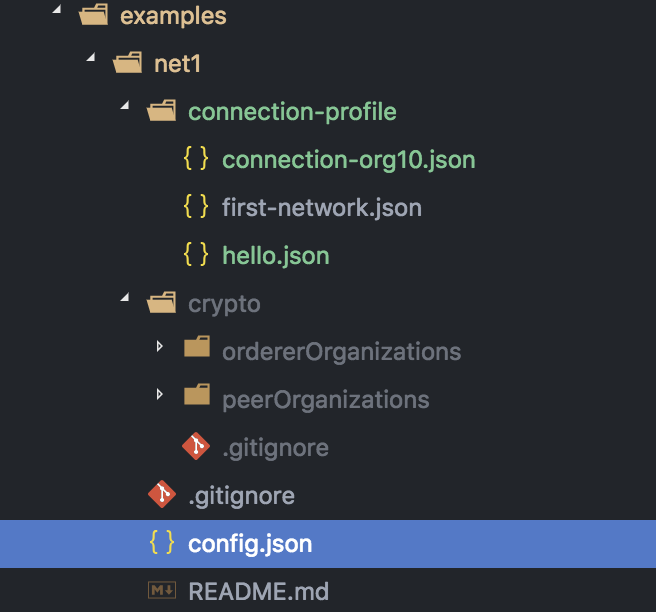

将连接文件放到examples/net1/connection-profile目录下,连接文件hello.json的内容为：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69

{
	"name": "hello",
	"version": "1.0.0",
	"license": "Apache-2.0",
	"client": {
		"tlsEnable": true,
		"adminUser": "admin",
		"adminPassword": "adminpw",
		"enableAuthentication": false,
		"organization": "Org1",
		"connection": {
			"timeout": {
				"peer": {
					"endorser": "300"
				},
				"orderer": "300"
			}
		}
	},
	"channels": {
		"mychannel": {
			"peers": {
				"peer0.org1.example.com": {}
			},
			"connection": {
				"timeout": {
					"peer": {
						"endorser": "6000",
						"eventHub": "6000",
						"eventReg": "6000"
					}
				}
			}
		}
	},
	"organizations": {
		"Org1MSP": {
			"mspid": "Org1MSP",
			"fullpath": true,
			"adminPrivateKey": {
				"path": "/tmp/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/keystore/f5f0ce356534b957f56daf2880688c02982ae234af215bd4ee732cd6d548845e_sk"
			},
			"signedCert": {
				"path": "/tmp/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/signcerts/Admin@org1.example.com-cert.pem"
			},
			"peers": [
          "peer0.org1.example.com",
          "peer1.org1.example.com",
          "peer2.org1.example.com"
      ],
      "certificateAuthorities": [
          "ca.org1.example.com"
      ]
		}
	},
	"peers": {
		"peer0.org1.example.com": {
			"tlsCACerts": {
				"path": "/tmp/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt"
			},
			"url": "grpcs://peer0.org1.example.com:7051",
			"eventUrl": "grpcs://peer0.org1.example.com:7053",
			"grpcOptions": {
				"ssl-target-name-override": "peer0.org1.example.com"
			}
		}
	}
}

***步骤五、修改docker-compose配置文件
通过docker启动explorer可以避免一些安装污染宿主机已有的环境，docker-compose.yaml主要包含了postgresql数据库和explorer工程node运行环境。

修改docker-compose.yaml docker服务配置文件
主要修改几个内容：

  • networks 改成与区块链同个网络便于访问区块链

  • 配置explorerdb.mynetwork.com
    添加端口和网络

    1
    2
    3
    4
    ports:
      - 5432:5432
    networks:
      - mynetwork.com

  • 配置explorer.mynetwork.com
    添加端口和网络

    1
    2
    3
    4
    ports:
        - 8090:8080
    networks:
        - mynetwork.com

整体配置文件如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

# SPDX-License-Identifier: Apache-2.0
version: '2.1'

volumes:
  pgdata:
  walletstore:
  grafana-storage:
  prometheus-storage:

networks:
  mynetwork.com:
    external:
      name: helloworld_hello

services:

  explorerdb.mynetwork.com:
    image: hyperledger/explorer-db:latest
    container_name: explorerdb.mynetwork.com
    hostname: explorerdb.mynetwork.com
    environment:
      - DATABASE_DATABASE=fabricexplorer
      - DATABASE_USERNAME=hppoc
      - DATABASE_PASSWORD=password
    volumes:
      - ./app/persistence/fabric/postgreSQL/db/createdb.sh:/docker-entrypoint-initdb.d/createdb.sh
      - pgdata:/var/lib/postgresql/data
    ports:
      - 5432:5432
    networks:
      - mynetwork.com

  explorer.mynetwork.com:
    image: hyperledger/explorer:latest
    container_name: explorer.mynetwork.com
    hostname: explorer.mynetwork.com
    environment:
      - DATABASE_HOST=explorerdb.mynetwork.com
      - DATABASE_USERNAME=hppoc
      - DATABASE_PASSWD=password
      - DISCOVERY_AS_LOCALHOST=false
    volumes:
      - ./examples/net1/config.json:/opt/explorer/app/platform/fabric/config.json
      - ./examples/net1/connection-profile:/opt/explorer/app/platform/fabric/connection-profile
      - ./examples/net1/crypto:/tmp/crypto
      - walletstore:/opt/wallet
    command: sh -c "sleep 16&& node /opt/explorer/main.js && tail -f /dev/null"
    ports:
      - 8090:8080
    networks:
      - mynetwork.com

  proms:
    container_name: proms
    image: prom/prometheus:latest
    volumes:
      - ./app/platform/fabric/artifacts/operations/balance-transfer/prometheus.yml:/etc/prometheus/prometheus.yml
      - prometheus-storage:/prometheus
    ports:
      - '9090:9090'
    networks:
      - mynetwork.com

  grafana:
    container_name: grafana
    image: grafana/grafana:latest
    volumes:
      - ./app/platform/fabric/artifacts/operations/balance-transfer/balance-transfer-grafana-dashboard.json:/var/lib/grafana/dashboards/mydashboard.json
      - ./app/platform/fabric/artifacts/operations/grafana_conf/provisioning:/etc/grafana/provisioning
      - grafana-storage:/var/lib/grafana
    ports:
      - '3000:3000'
    networks:
      - mynetwork.com

2、运行docker-compose

在blockchain-explorer目录下执行

1
2

docker-compose up -d

如果出现错误一般情况下是Fabric连接文件或证书文件有错。

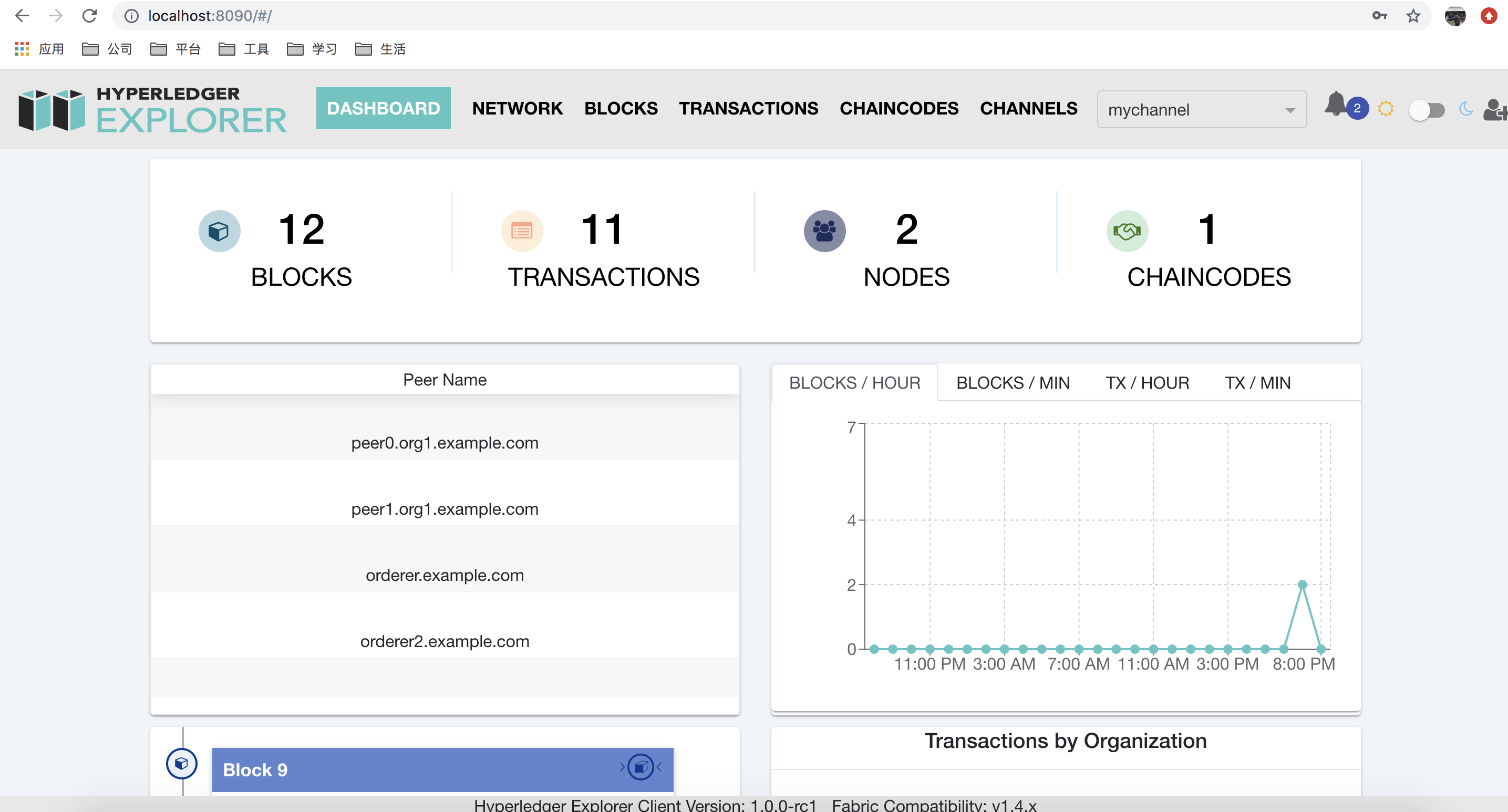

运行后在浏览器打开http://localhost:8090/,如下图所示：

explorer
